High Strength Torsional Shear Bolts for Steel Structures

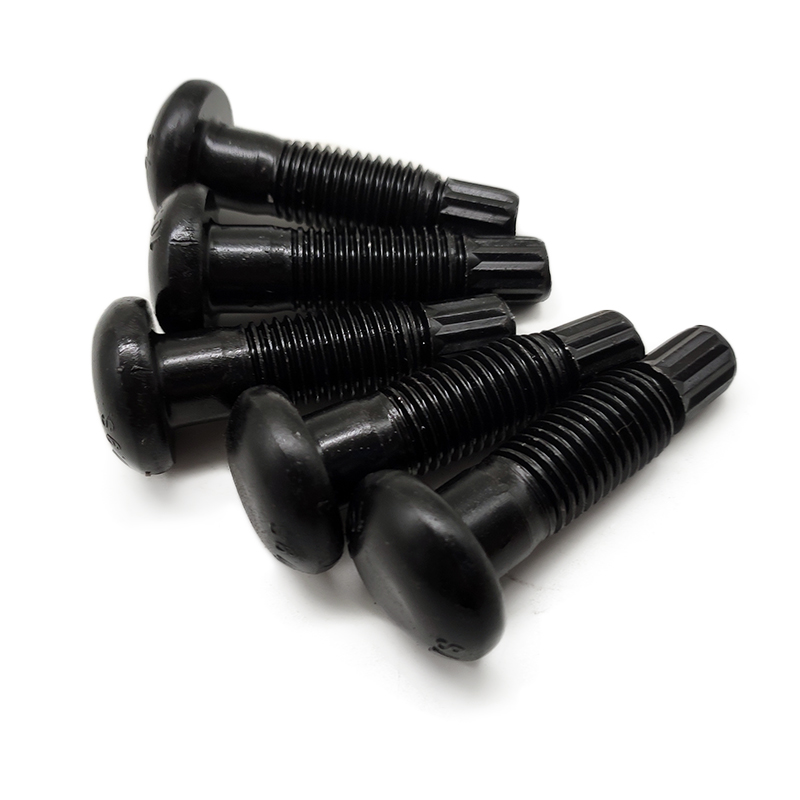

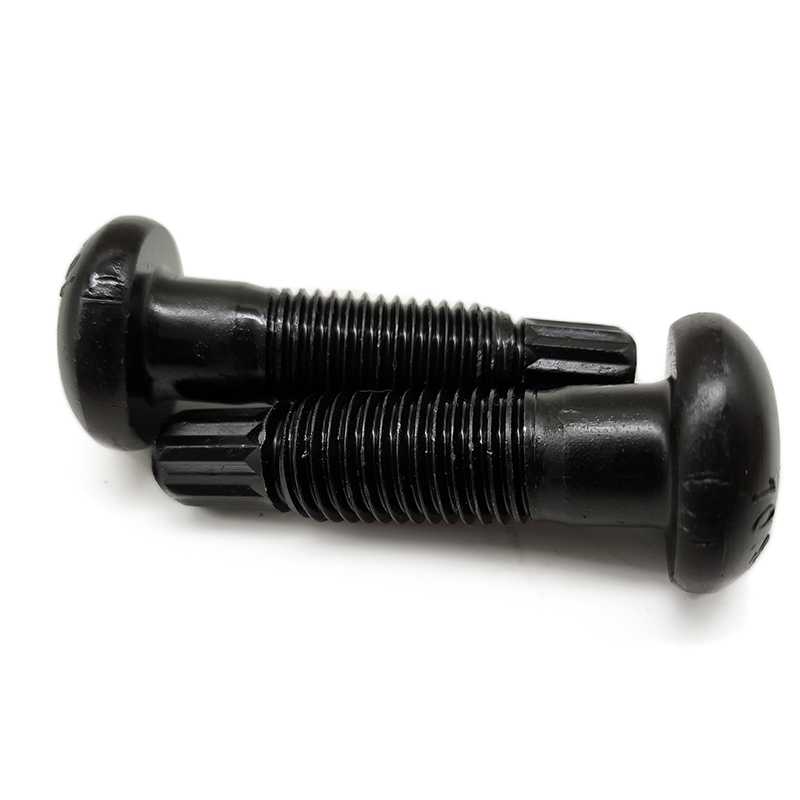

Product Picture：
Product Description:
|
Product name
|
Hot Selling Torsional Shear Bolts for Steel Structures Tension Control Bolts
|
|
Standard
|
JSS II09
|
|
Grade
|
S10T or 10.9
|
|
Dia.
|
M12-M30
|
|
Length
|
40-300mm
|
|
Materials
|
Carbon steel–ML20MnTiB Alloy steel—40Cr / 35VB
|
|
Available finish
|
Dacromet, black oxide, phosphating, electronic galvanized,ect.
|
|

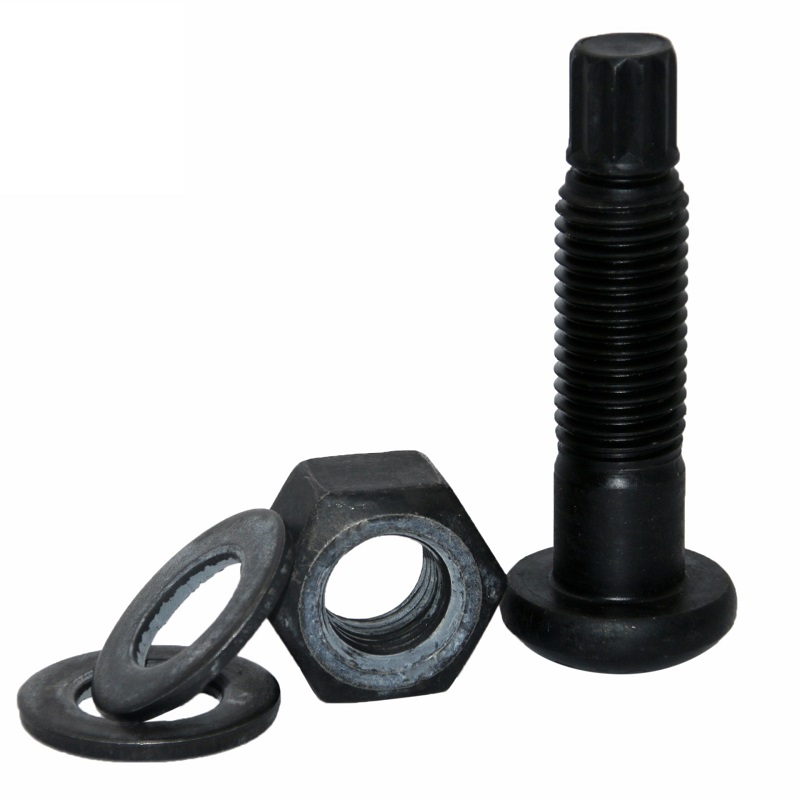

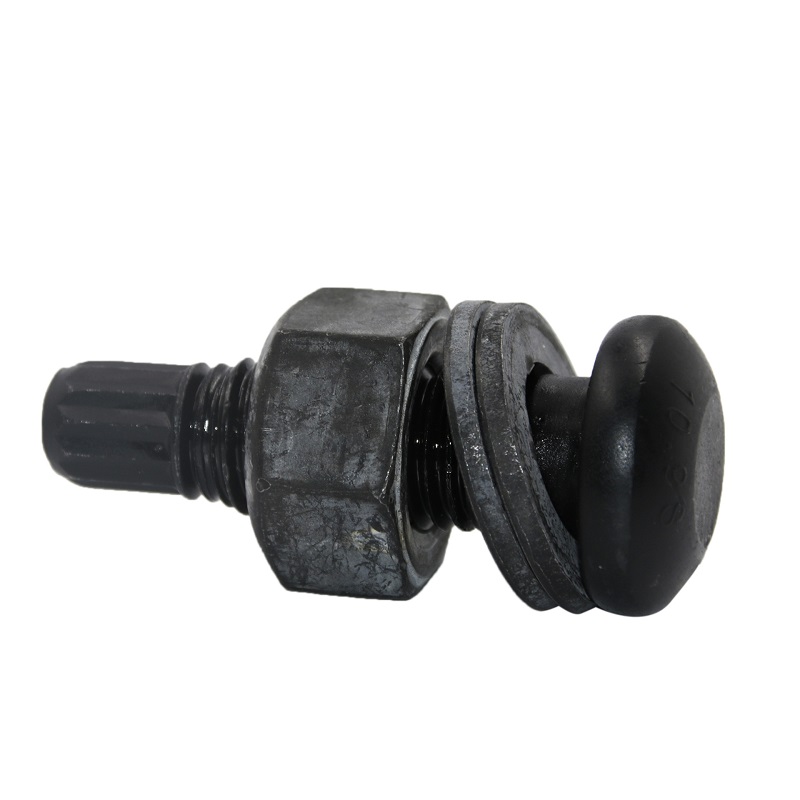

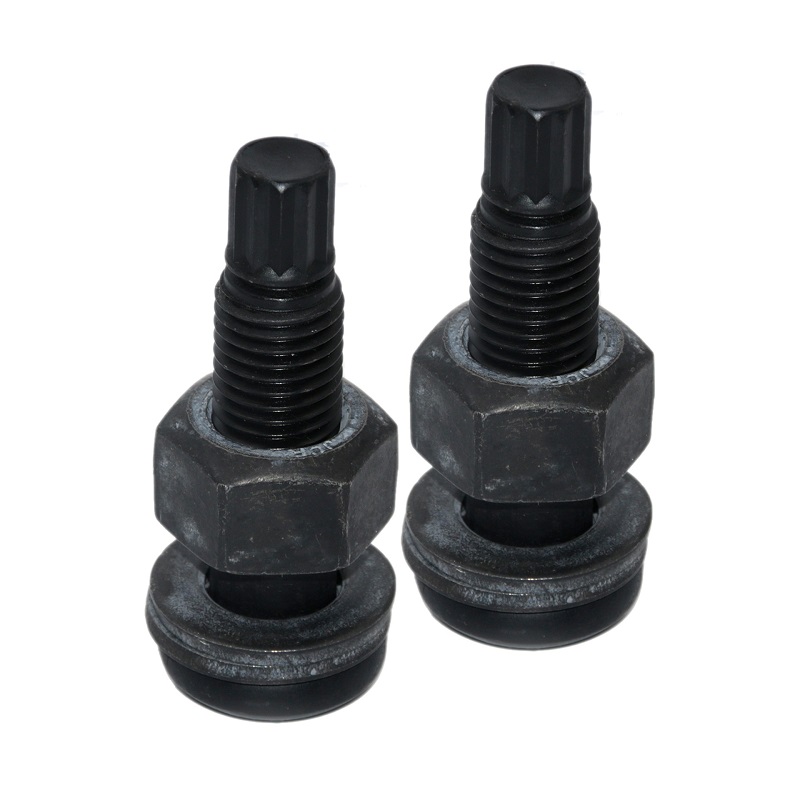

Bolt Set
|
set= 1 bolt + 1 Nut + 1 washer
|
|
Head marking
|
HYZ+S10T or customers’ brand + S10T
|
|
Packing
|
Carton and wooden pallet or wooden case; barrel+wooden pallet
|
|
Certification
|
FPC BC1, SGS,BV,ISO, factory testing report.
|
Product advantages:
- Precision Machining
☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.
- High-quality carbon steel(35#/45#)
☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.
- Cost-effective
☆ The use of high-quality carbon steel steel, after precision processing and forming, greatly improves the user experience.
Parameter Of Product:
| Thread specification | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | |
| d | |||||||
| PP | UNC | 13 | 11 | 10 | 9 | 8 | 7 |
| k | Maximum | 0.323 | 0.403 | 0.483 | 0.563 | 0.627 | 0.718 |
| minimum value | 0.302 | 0.378 | 0.455 | 0.531 | 0.591 | 0.658 | |
| ds | Maximum | 0.515 | 0.642 | 0.768 | 0.895 | 1.022 | 1.149 |
| minimum value | 0.482 | 0.605 | 0.729 | 0.852 | 0.976 | 1.098 | |
| dk | Maximum | 1.126 | 1.313 | 1.58 | 1.88 | 2.158 | 2.375 |
| b | Thread length | 1 | 1.25 | 1.38 | 1.5 | 1.75 | 2 |
| z | reference value | 0.5 | 0.6 | 0.65 | 0.72 | 0.8 | 0.9 |
| s1 | reference value | 0.32 | 0.43 | 0.53 | 0.61 | 0.7 | 0.8 |
OUR PACKAGE:
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
