China Wholesale Grade8.8 Bolt And Nut Manufacturers - DIN 928 Carbon Steel Stainless Steel Square Welding Nut – Yateng Detail:

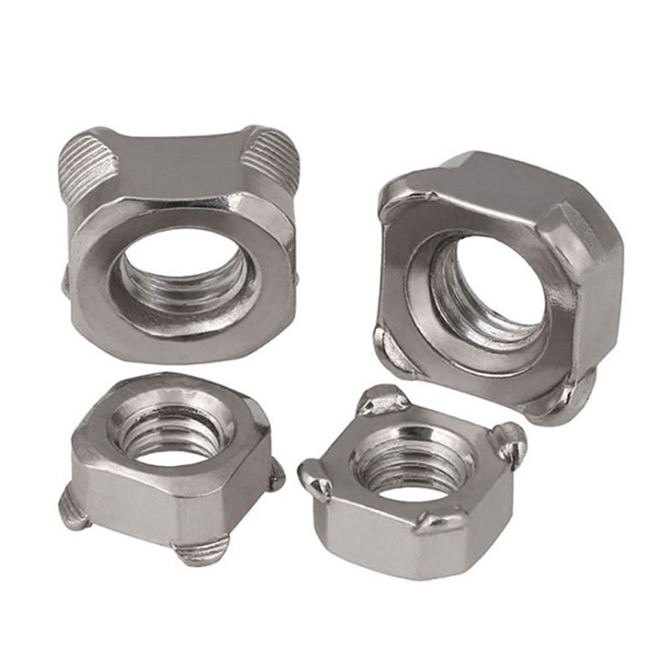

Product Picture：
Product Description:
| 1.Standard: | DIN928 |
| 2.Grade: | square |
| 3.Material: | Low carbon steel、Stainless Steel |
| 4.Size: | M3-M16 |
| 5.Finish: | plain |
| 6.Mark: | According to customer’s requirement |
| 7.Delivery time: | Normally in 30-40 days. |
| 8.Quality: | Top high quality. |
| 9.Package: | Cartons&pallets or according to customer’s requirement. |
Product advantages:
- Precision Machining
☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.
- High-quality carbon steel(35#/45#)
☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.
- Cost-effective
☆ The use of high-quality carbon steel steel, after precision processing and forming, greatly improves the user experience.
Parameter Of Product:
| Thread specification | M4 | M5 | M6 | M8 | M10 | 7/16 ① | 7/16 ① | M12 | M14 | M16 | |
| D | |||||||||||
| P | coarse teeth | 0.7 | 0.8 | 1 | 1.25 | 1.5 | / | / | 1.75 | 2 | 2 |
| fine teeth 1 | / | / | / | 1 | 1 | / | / | 1.25 | 1.5 | 1.5 | |
| fine teeth 2 | / | / | / | / | 1.25 | 20 | 20 | 1.5 | - | - | |
| b | Nominal | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 1.8 | 2 | 2 | 2.5 | 2.5 |
| maximum value | 0.95 | 1.15 | 1.35 | 1.65 | 2 | 2 | 2.2 | 2.2 | 2.7 | 2.7 | |
| minimum | 0.65 | 0.85 | 1.05 | 1.35 | 1.6 | 1.6 | 1.8 | 1.8 | 2.3 | 2.3 | |
| d1 | min=nominal (H13) | 5 | 6 | 7.5 | 10 | 12.5 | 12.5 | 13.5 | 13.5 | 16.8 | 18.8 |
| maximum value | 5.18 | 6.18 | 7.72 | 10.22 | 12.77 | 12.77 | 13.77 | 13.77 | 17.07 | 19.13 | |
| d2 | maximum value | 4.2 | 5.25 | 6.3 | 8.4 | 10.5 | 11.7 | 11.7 | 12.6 | 14.7 | 16.8 |
| d3 | minimum | 6.4 | 8.2 | 9.1 | 12.8 | 15.6 | 15.6 | 17.4 | 17.4 | 20.4 | 22.4 |
| e | minimum | 9 | 12 | 13 | 18 | 22 | 22 | 25 | 25 | 28 | 32 |
| h1 | Nominal | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 |
| maximum value | 0.7 | 0.9 | 0.9 | 1.1 | 1.3 | 1.3 | 1.5 | 1.5 | 1.5 | 1.7 | |
| minimum | 0.5 | 0.7 | 0.7 | 0.9 | 1.1 | 1.1 | 1.3 | 1.3 | 1.3 | 1.5 | |
| h2 | minimum | 0.4 | 0.6 | 0.7 | 1.1 | 1.25 | 1.25 | 1.75 | 1.75 | 1.75 | 2 |
| maximum value | 1.3 | 1.5 | 1.8 | 2 | 2.2 | 2.2 | 3 | 3 | 3.2 | 4 | |
| m | max=nominal (h13) | 3.5 | 4.2 | 5 | 6.5 | 8 | 9 | 9 | 9.5 | 11 | 13 |
| minimum | 3.2 | 3.9 | 4.7 | 6.14 | 7.64 | 8.64 | 8.64 | 9.14 | 10.57 | 12.57 | |
| s | max=nominal (h13) | 7 | 9 | 10 | 14 | 17 | 17 | 19 | 19 | 22 | 24 |
| minimum | 6.64 | 8.64 | 9.64 | 13.57 | 16.57 | 16.57 | 18.48 | 18.48 | 21.48 | 23.48 | |
| 千件重kg | 0.81 | 1.7 | 2.4 | 6.5 | 11.3 | 12.5 | 16.5 | 16.5 | 26.7 | 35.8 | |
| guaranteed load(N) | coarse teeth | 6800 | 11000 | 15500 | 28300 | 44800 | - | - | 65300 | 89700 | 123000 |
| fine teeth 1 | - | - | - | 30200 | 50200 | - | - | 72100 | 97500 | 132000 | |
| fine teeth 2 | - | - | - | - | 47800 | 53600 | 53600 | 68200 | - | - | |
OUR PACKAGE:
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request

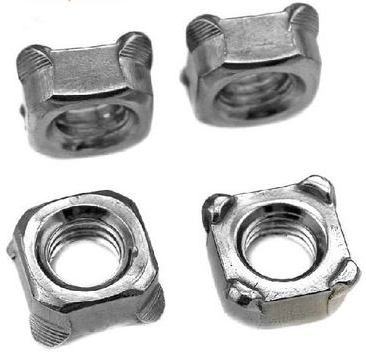

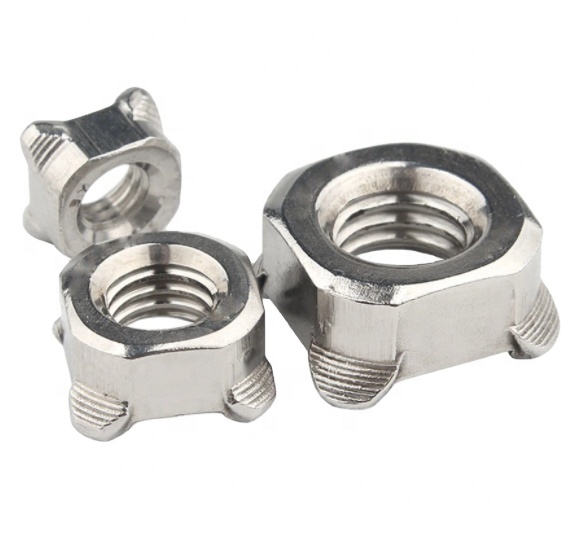

Product detail pictures:
